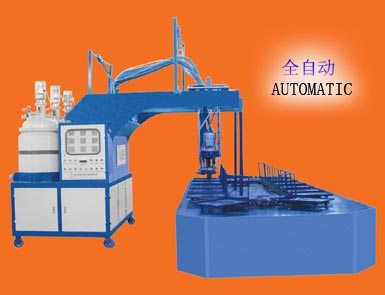

 Products name: PU30D-2Z AUTOMATIC POLYURETHANE FOAM SOLE POURING MACHINE
Features:
1` Specially for producing all kinds of single/double color soles and link-upper shoes.
2` All the pouring process is full automatic and needn't manpower move the pouring-head.
3` In accordance with each shape feature can setting per mould alone pouring technique,
pouring can be divided into at most 4 sections, sole foaming is special even.
4`Production line is always running, pouring-head automatic tracking moulds, and high
production efficiency.
5` Equipped with high-precision linear slide rail to ensure pouring system move smoothly,
low noise.
6` Pouring system derived by high performance servomotor through the high-precision
ball screw mandrel, quick displacement and accurate positioning.
7` Adopting the import high-precision metering pump for accurate measurement material
quantity.
8` The alarm function will alarm at once when the raw material proportioning is abnormity,
so it will reduce raw material loss.
Parameter:
|
Model |
PU30D-2Z |
| Pouring subsection number |
1-4 |
|
bucket number |
3a |
|
bucket cubage |
120L |
|
rated voltage |
380V |
|
whole machine power |
17.5kw |
|
metering pump number |
3a |
|
rotary speed of metering pump |
60-300r/min |
|
rotary speed of rabbling head |
4000/5000 r.p.m |
|
|
|
| |
