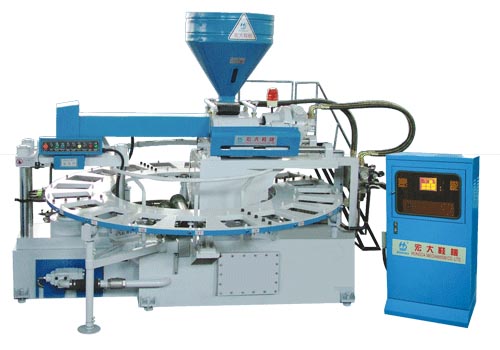

Products name:  HD-D120 FULL-AUTOMATIC ROTARY TYPE OF SINGLE-COLOR PLASTIC SOLE INJECTION MOULDING MACHINE
 Features:
1.This machine is suitable for inject moulding kinds of thermoplastic as PVC, TPR, TPU, TR of single color sole, shoelace and other daily plastic goods.
2.Small diameter screw, injection pressure is higher, gauging is more accurater. Specially designed screw specially suitable for produce kinds of PVC crystal sole and soleace, the product transparency is good like glass, has no shrink or other bad phenomenon .
3.Specially designed hydraulic system, mould clamping system auto keep pressure when injection, save electric energy, also lengthen the live of the machine.
4.Strong electric and low electric fixed apart, so the electric system run more tranquilization.
5.The bigger rotary disk, supplyed more space to open mould and put something into the mould, the bigger rectangle station hole, equip rectangle mould closeing block, increase the touch area of the mould fixed plate and the closeing block, so it keeep the mould more compaction, and the finally product quality is better.
6.Use a crystal touch screen, PLC auto control, automatically detectable, easily and safety operated.
 Papameter:

Work station	station	16/20
Productivity	Pair/hour	160
Screw diameter	mm	55
Screw length diameter ratio	L/D	24:1
Max injection volume	cm3	620
Max injection pressure	kg/cm2	1250
Mould space(H)	mm	220
Mould clamp cylinder diameter	mm	220
Motor	kw	18.5/22
Temperature control	zone	4
Heating power	kw	8
Totol power	kw	26.5/30
Machine dimension	m	3.5×2.6×2.5
Weight	ton	6.8
