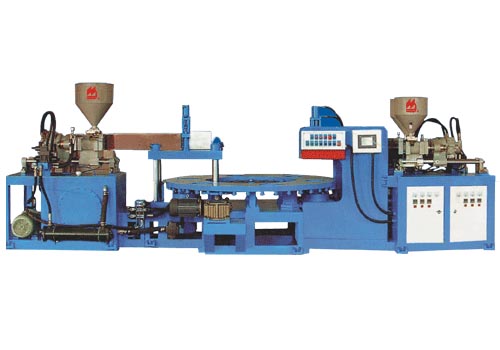

 Products name: HD-B110 FULL-AUTOMATIC ROTARY TYPE OF THREE-COLOR PLASTIC INJECTION MOULDING MACHINE
Features:
1.This machine is suitable for inject moulding kinds of thermoplastic as PVC, TPR, TPU, TR of single or multi color shoelace and other daily plastic goods.
2.Specially designed screw specially suitable for produce kinds of PVC crystal solelace, the product transparency is good like glass, has no shrink or other bad phenomenon.
3.The mainframe injection capacity reach 260cm3, so this machine can also produce multi color crytal sole and other thermoplastic sole.
4.The rational injection capacity configure, so the total power is low, save energy.
5.Use a crystal touch screen, PLC auto control, automatically detectable, easily and safety operated.
Parameter :
| Item |
Unit |
HD-B106 |
HD-B110 |
| Work station |
station |
6 |
10 |
| Productivity |
Pair/hour |
200-500 |
200-500 |
| Screw diameter |
mm |
42/30/30 |
42/30/30 |
| Screw length diameter ratio |
L/D |
24:1 |
24:1 |
| Max injection volume |
cm3 |
260/105/105 |
260/105/105 |
| Max injection pressure |
kg/cm2 |
1140 |
1140 |
| Mould space(H) |
mm |
150 |
150 |
| Motor |
kw |
7.5/7.5 |
7.5/7.5 |
| Heating power |
kw |
9 |
9 |
| Machine dimension |
m |
5×1.8×1.8 |
5×1.8×1.8 |
| Weight |
ton |
8.5 |
8.5 |
|
|
|
| |
