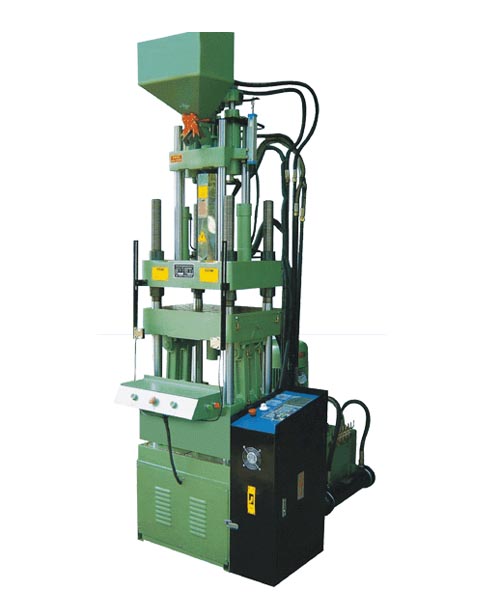

Products name: HD-L280 FULL-AUTOMATIC STAND-UP TYPE OF PLASTIC SOLE & SHOELACE INJECTION MOULDING MACHINE
Features:
1.This machine is suitable for inject moulding kinds of thermoplastic asPVC, TPR, TPU, TR of single color sole, shoelace and other daily plastic goods.
2.Small diameter screw, injection pressure is higher, gauging is more accurate, specially designed screw specially suitable for produce kinds of PVC crystal sole and solelace, the product transparency is good like glass, has no shrink or other bad phenomenon.
3.Use import rotary encoder control plastic volue, the injection accuracy is high.
4.Stand-up machine shape, it need small space.
5.The mould clamp system adopt elbow rod structure, so the mould clamp force is high, the finished product rate is high.
6.One worker can operate two machine at the same time, mould open by itself, so the worker operate it easy.
Papameter:
| Item |
Unit |
HD-L280 |
HD-L400 |
| Work station |
station |
1 |
1 |
| Productivity |
Pair/hour |
100 |
100 |
| Screw diameter |
mm |
42 |
50 |
| Screw length diameter ratio |
L/D |
24:1 |
24:1 |
| Max injection volume |
cm3 |
280 |
400 |
| Max injection pressure |
kg/cm2 |
1140 |
1000 |
| Mould space(H) |
mm |
330 |
330 |
| Max mould opening stroke |
mm |
300 |
300 |
| Mould plate size |
mm |
600×460 |
600×460 |
| Motor |
kw |
7.5 |
11 |
| Heating power |
kw |
4 |
4 |
| Machine dimension |
m |
1.6×1×2.8 |
1.7×1.1×2.9 |
| Weight |
ton |
2.1 |
2.4 |
