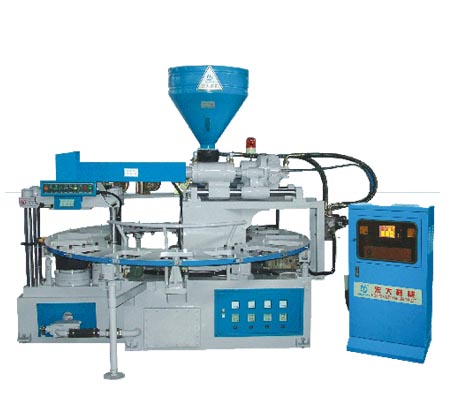

Products name:   HD-D216 FULL-AUTOMATIC ROTARY TYPE OF SLIPPER INJECTION MOULDING MACHINE
 Features:
1.This machine is suitable for inject moulding kinds of thermoplastic as PVC,TPR, TPU, TR of single color slipper, sandal, sole, shoelace and other daily plastic goods.
2.Small diameter screw, injection pressure is higher, gauging is more accurater. Specially designed screw specially suitable for produce kinds of PVC crystal sole and solelace, the product transparency is good like glass, has no shrink or other bad phenomenon.
3.Specially designed triangle mould closeing block, suitable for not only usual mould but other triangle mould, so it can produce slipper and sandl with side.
4.Strong electric and low electric fixed apart, so the electric system run more tranquilization.
5.The bigger rotary disk, supplyed more space to open mould and put something into the mould, the bigger rectangle station hole, equip rectangle mould closeing block, increase the touch area of the mould fixed plate and the closeing block, so it keep the mould more compaction, and the finally product quality is better.
6.Use a crystal touch screen, PLC auto control, automatically detectable, easily and safety operated.
 Papameter:

Work station	station	16
Productivity	Pair/hour	200-500
Screw diameter	mm	55
Screw length diameter ratio	L/D	24:1
Max injection volume	cm3	620
Max injection pressure	kg/cm2	1250
Mould space(H)	mm	230
Mould clamp cylinder diameter	mm	220
Motor	kw	18.5/22
Temperature control	zone	4
Heating power	kw	8
Totol power	kw	26.5/30
Machine dimension	m	3.5×2.6×2.5
Weight	ton	7.2
