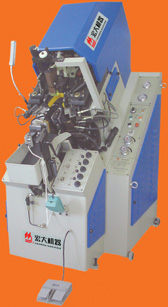

Products name: HD-838 AUTOMATIC HYDRAULIC TOE LASTING MACHINE
Features:
Main Characteristic:
1`The pincers were designed newly, in order to dismantle and install the structure fast,
changing the pincers within 30 seconds.
2`Specially tracked wipers matched all-around forming band make the shoes will be lasted
and finished perfectly.
3`The mechanism of toe part pressing adopts adjustable 2-stage pressure, the first
pressure can be adjusted to zero, guarantee the special material is not drawn broken
by wipers, and obtain the lasting optimum effect.
4`Each set of pincers has the function of independently automatic down pulling according to
the elasticity of uppers operators can control to pull down any certain pincers, whose
depth can be adjusted subject to individual requests.
5`The 9 independdent pincers can be individually adjusted to fit in with the lasting of
any shapes of toe cap. The automatic balance device and the theory of automatic descending
on wipers's advancing are the very key points for improving quality and increasing the output.
6`The wipers have the functions of stage movement and speed adjustment, which make
the whole adjustment of lasting control more convenient.
7`The machine is equipped with cross projector assembly, which is convenient for
correcting toe lasting and helps new comers to easily operate the machine.
8`Break the normal design principle of the shoes machine, exclusive adopts left and right
pincer-dish is separated to adjustment. This solving the problem that left and right upper
shoes not easy to operated. It exaltation the yield and more suit many factories to adopt it.
9`Along with the shoe cultural development and the fashionable shoe more and more
popular now, we add the heel quick entering function to fit any no heel shoes operate.
Parameter :
|
Model |
HD-838 |
|
Power |
2HP |
|
Heating power |
1.24KW |
|
Pressure |
50kg/cm2 |
|
Output |
1800-2000Pairs/8Hr |
|
Net weight |
1320kg |
|
Gross weight |
1950kg |
|
Dimensions(L×W×H) |
1710×1000×1950mm |
|
Package size (L×W×H) |
1880×1090×2120mm |
|
Hydraulic oil |
142Liter |
