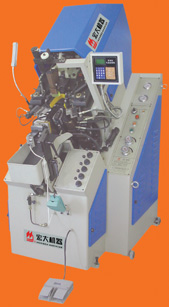

 Products name: HD-858 AUTOMATIC HYDRAULIC TOE LASTING MACHINE
Features:
Main Characteristic:
1`The machine adopts touching-screen PLC control system, has"memory" function, more easy
to operate the machine, Improve the output for the clients.
2`PLC has the automated detection function, more converient maintenance the machine.
3`The pincers were desinged newly, in order to dismantle and install the structure fast,
changing the pincers within 30 seconds.
4`Specially tracked wipers matched all-around forming band make the
shoes will be lasted and finished perfectly.
5`The mechanism of toe part pressing adopts adjustable 2-stage pressure,
the first pressure can be adjusted to zero, guarantee the special material
is not drawn broken by wipers, and obtain the lasting optimum effect.
6`Each set of pincers has the function of independently automatic down pulling according
to the elasticity of uppers operators can control to pull down any certain pincers, whose
depth can be adjusted subject to individual requests.
7`The 9 independdent pincers can be individually adjusted to fit in with the lasting of any
shapes of toe cap. The automatic balance device and the theory of automatic descending on
wipers's advancing are the very key points for improving quality and increasing the output.
8`Break the normal design principle of the shoes machine, exclusive adopts left and right
pincer-dish is separated to adjustment. This solving the problem that left and right upper
shoes not easy to operated. It exaltation the yield and more suit many factories to adopt it.
9`Along with the shoe cultural development and the fashionable shoe more and more popular now,
we add the heel quick entering function to fit any no heel shoes operate.
Parameter:
|
Model |
HD-858 |
|
Power |
2HP |
|
Heating Power |
1KW |
|
Pressure |
40kg/cm2 |
|
Output |
1800-2000Pairs/8Hr |
|
Net weight |
1320kg |
|
Gross weight |
1850kg |
|
Dimensions(L×W×H) |
1710×1000×1950mm |
|
Package size (L×W×H) |
1880×1090×2120mm |
|
Hydraulic oil |
142Liter |
|
|
|
| |
