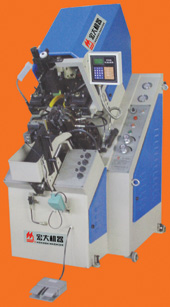

 Products name: HD-858A AUTOMATIC HYDRAULIC TOE LASTING MACHINE
Features:
1`The machine adopts toching-screen PLC control system, has "memory" function, more
easy to operate the machine, Improve the output for the clients.
2`PLC has the automated detection function, more converient maintenance the machine.
3`The pincers were desinged newly, in order to dismantle and instll the structure fast,
changing the pincers within 30 seconds.
4`Specially tracked wipers matched all-around forming band make the shoes will be lasted
and finished perfectly.
5`The mechanism of toe part pressing adopts adjustable 2-stage pressure,
the first pressure can be adjusted to zero, guarantee the special material
is not drawn broken by wipers, and obtain the lasting optimum effect.
6`Each set of pincers has the function of independently automatic down pulling according
to the elasticity of uppers operators can control to pull down any certain pincers, whose
depth can be adjusted subject to individual requests.
7`The 7 independdent pincers can be individually adjusted to fit in with the lasting of
any shapes of toe cap. The automatic balance device and the theory of automatic
descending on wipers's advancing are the very key points for improving quality and increasing the output.
8`Break the normal design principle of the shoes macine, exclusive adopts left and right
pincer-dish is separated to adjustment. This solving the problem that left and right upper
shoes not easy to operated. It exaltation the yield and more suit many factories to adopt it.
9`Along with the shoe cultural development and the fashionable shoe more and more popular
now, we add the heel quick entering function to fit any no heel shoes operate.
Parameter:
|
Model |
HD-858A |
|
Power |
2HP |
|
Heating power |
1KW |
|
Pressure |
50kg/cm2 |
|
Output |
2000-2500Pairs/8Hr |
|
Net weight |
1320kg |
|
Gross weight |
1950kg |
|
Dimensions(L×W×H) |
1710×1000×1950mm |
|
Package size (L×W×H) |
1880×1090×2120mm |
|
Hydraulic oil |
142Liter |
|
|
|
| |
