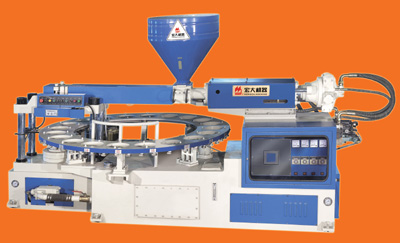

Products name:  HD-SZEA-16 Monocolor Sole Injection/Extruding Machine

Features:
1_{`</sub>The machine is suitable for all kinds of thermoplastic materials, foaming and non-foaming, such as TPU, TPR, PVC etc. for soles, injecting.
2<sub>`}Full automatic computer control system, needn't specialist to operate, can save lots of
labour and time, low noise, low revolving speed & high twisting hydraulic motor to drive feeding shaft with accelerated speed.
3_{`</sub>Low noise, low revolving speed & high torgue hydraulic motor to drive feeding shaft with
stepless speed. The injecting quantity of as material, controlled  by computer, is
divided into 20 injections.
4<sub>`}The output is 160 pairs/hour.
Parameter:

Technical Terms	Unit of Parameter	HD-SZEA-16/20/24
Injection Capacity	G	780×1
Injection precision	G	±0.45
Injection hydraulic pressure	Mpa	6
Screw rotary speed	r.p.m	0-200
Injection speed	CM/sec	10
Mould clamping pressure	Mpa	5
System hydraulic pressure	Mpa	16
Max injection stroke	mm	200
Mould-opening stroke	mm	300
Oil tank capacity	Kg	720
Electrothermal power	Kw	8
Power of motor	Kw	22
Mould station number	a	16
Max. dimension of mould	mm	3500×2450×2450； 3500×2500×2450；
Machine weight	Kg	5880； 6000
