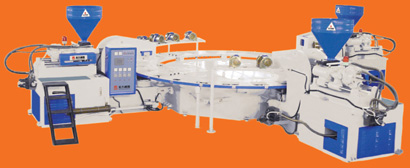

Products name: HD-SZEA3J-24 FULL-AUTOMATIC TYPE OF THREE-COLOR PLASTIC SHOES INJECTION MOLDING MACHINE
Features:
1`Specially producing all kings of single/three color soles of sports shoes, sandals and ladies and gentlemen'
s shoes, etc.
2`Specially for producing the foaming, unfoaming soles of thermoplastic materials, PVC, TPR or TPU.
3`Full automatic computer controlling system, with pressure and flow proportional control, can control
its technological requirements of different mold.
4`Adopts import linear potential meter to control plastic quantity. The injection accuracy is
up to 0.1mm, then ensure its stable quality.
5`The heating zone adopts advanced electronic solid relay. It can frequently electrify for long time
without any the temperature will be shown on the control box.
6`Automatic adjustment system of mold parallelizing can ensure regular products with smooth edge.
7`With strong close mold base and lock mold power, close mold at one step, three color material
injected simultaneously to save time and increase production and profit.
8`This machine can produce single/three color products.
9`The output is 180 pairs/hour.
Parameter:
|
Technical Terms |
Unit of Parameter |
HD-SZEA3J-24 |
|
Injection Capacity |
G |
780×1／620×2 |
|
Injection precision |
G |
±0.45 |
|
Injection Hydraulic pressure |
Mpa |
80 |
|
Screw rotary speed |
r/min |
0～200 |
|
Injection Speed |
cm/sec |
10 |
|
Mould clamping pressure |
T |
60 |
|
System hydraulic pressure |
Mpa |
16 |
|
Max injection stroke |
Mm |
320 |
|
Mould-opening stroke |
Mm |
300 |
|
Oil Tank capacity |
Kg |
720 |
|
Electrothermal power |
Kw |
10 |
|
Power of motor |
Kw |
3×22 |
|
Mould station number |
Entries |
24 |
|
Max. Dimension of mould |
Mm |
10000×8500×2200 |
|
Machine weight |
Kg |
26500 |
