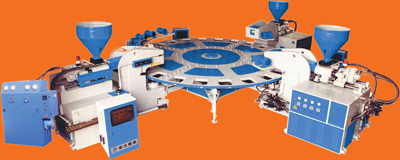

Products name: HD-SZEA5-24 FULL-AUTOMATIC TYPE OF TINY PORE HIGH-SPEED FROTH Three-color Plastic Shoes Injection Moulding Machine
Features:
1`Specially producing all kings of single/two/three color soles of sports shoes, sandals and ladies and gentlemen's shoes, etc.
2`Specially for producing the foaming, unfoaming soles of thermoplastic materials, PVC, TPR or TPU.
3`Full automatic computer controlling system, with pressure and flow proportional control, can control its technological requirements of different mould.
4`Special screw stricture and gas adding device, made t he core of the soles full of tiny hole, wearing comfortable.
5`The soles are 30% lighter than the traditional soles, so it save material cost.
6`Special design of muzzle switch, made it no waste of the stem, save material cost.
7`The heating zone adopts advanced electronic solid relay. It can frequently electrify for long time without any the temperature will be shown on the control box.
8`With strong close mould base and lock mould power, close mould at one step, three color material injected simultaneously to save time and increase production and profit.
9`The output is 180 pairs/hour.
Parameter:
|
Technical terms |
Unit of Parameter |
Model |
|
HD-SZEA5-24 |
|
Injection capacity |
G |
780×1
670×2 |
|
Injection precision |
G |
±0.45 |
|
Injection hydraulic pressure |
Mpa |
80 |
|
Screw rotary speed |
r/min |
0～200 |
|
Injection speed |
cm/sec |
20 |
|
System hydraulic pressure |
Mpa |
60 |
|
Max injection stroke |
mm |
200 |
|
Mould-opening stroke |
mm |
300 |
|
Oil tank capacity |
Kg |
850 |
|
Electrothermal power |
Kw |
11 |
|
Power of motor |
Kw |
3×22 |
|
Mould station number |
Entries |
24 |
|
Max. Dimension of mould |
mm |
11300×8200×2200 |
|
Machine weight |
Kg |
26500 |
