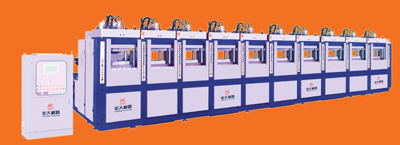

Products name: HDEVA-Z10 EVA FULL-AUTOMATIC FOAM EVA INJECTION MOULDING MACHINE
Features:
Mould Clamping System:
1` Comprehensive mold clamp ability. Several molds can be used at one station to increase production.
2` Accurate and rapid hydraulic mold adjusting mechanism, which can adjust the mold to suitable position quickly.
3` laten design with heating transmission analysis matched with PID control (Proportional Intgral differentiation), which control the temperature accurately to ensure stable product size.
4` Large platen surfaces which can accommodate several molds and increase production.
5` High rigidity pressure-resistant platen to eliminate deformation and prolong the service life of the mould whine reducing defect ratio.
Injection System:
1` Equipped with very high-pricise transducer to accurately control the injection feed volume and the amout of material injected to ensure the stability of product size.
2` High inject pressure which is suitable for a large diameter screw to increase the injection volume.
3` To provide material-feeding monitoring matched with material characteristics to ensure the stability of product size. 4`Equipped with linear transducer for positioning. The slide seats have high positioning accuracy to ensure the stability of injection system.
5` Equipped with rack bar drive mechanism for slide seat, to provide high speed, quick operation and
small backlash.
6`Driving motor equipped with brake, to position the mechanism without vibration.
7`Equipped with PID control unit which must accurately control the material temperature inside the barrel
to suit for each EVA material characteristic.
Parameter:
|
Item |
Unit |
Model |
|
- |
HDEVA-Z2 |
HDEVA-Z3 |
HDEVA-Z6 |
HDEVA-Z10 |
|
Number of work station |
Station |
2 |
3 |
6 |
10 |
|
Screw diameter |
mm |
D50(D60) |
D50(D60)×2 |
|
Screw length diameter ration |
L/D |
23:1 |
|
Hydraulic motor |
cc |
600(800) |
600(800)×2 |
|
Screw rotation speed |
r.p.m |
0-160 |
|
Max. injection stroke |
mm3 |
320 |
|
Max. injection volume |
cm |
620(900) |
|
Max. injection pressure |
kg/cm2 |
1200(835) |
|
Max. injection speed |
cm/sec |
10 |
|
Motor Power |
kw/Hp |
22.4/30 |
64/86 |
|
Hydraulic pump |
Sets |
1 |
3 |
|
Heat bands |
Sets |
12 |
24 |
|
Heating bands power |
Kw |
30.7 |
38.2 |
60.8 |
91 |
|
Total electric consumption |
Kw |
53.1 |
102.2 |
124.8 |
155 |
|
Mould height |
mm |
120-200 |
|
Mould clamping force |
Tons |
170 |
|
Mould space (L×W) |
mm |
500×290×2 |
|
Mould-opening stroke |
mm |
350 |
